ZinCo Systems for Extensive and Intensive Landscaped Roofs

When designing and installing a green roof, it is important to provide a growing environment as close as possible to the plant's natural environment. The most important factor is to compensate for the lack of subsoil. Each layer of a ZinCo green roof build-up is conceived to take over the relevant functions of the missing ground. A durable plant coverage is guaranteed.

Basic types of green roofs

Extensive roofs are an ecological alternative to conventional surface protection or ballast layers such as gravel and pavers. They are lightweight and have a shallow build-up height. Suitable plants include various Sedum species, herbs and some grasses. They cope with the conditions on the roof (sun, wind, drought, etc.) by nature. After establishment of the vegetation, the maintenance is limited to one or two inspections a year.

Intensive green roofs can most easily be compared to building a garden on a roof. They are usually multifunctional and accessible. They require more weight and a deeper system build-up. The maintenance is regular and depends on the landscape design and the chosen plant material. Depending on the substrate depth, anything is possible from lawns, perennials, shrubs, trees including other landscape options such as ponds, pergolas, patios, walkways and driveways. For all these kinds of use ZinCo provides well-engineered longlasting and functioning systems.

Additional systems

Additionally, ZinCo has designed a range of fantastic hybrid solutions and elaborate system build-ups focusing on stormwater management and counteracting Urban Heat Island effects.

Extensive Green Roof Systems

Sedum Carpet

“Sedum Carpet” is a shallow and lightweight green roof type that can easily deal with sun, wind and drought and requires little maintenance.
Technical Data
Build-up height ca. 3 ¾ in.
Weight, saturated ca. 20 lbs/sq. ft.
Water storage capacity ca. 0.8 gal/sq. ft

Ornamental Sedum

The green roofing system “Ornamental Sedum” leads to an extensive green roof with sophisticated design and individual character.
Technical Data
Build-up height ca. 4 in.
Weight, saturated ca. 22 lbs/sq. ft.
Water storage capacity ca. 0.9 gal/sq. ft

Sloped Sedum

Our highly sophisticated green roofing system with Georaster® elements even enables the installation on steep pitched roofs up to 35°.
Technical Data
Build-up height ca. 5 in.
Weight, saturated ca. 35 lbs/sq. ft.
Water storage capacity ca. 1.4 gal/sq. ft.
Intensive Green Roof Systems

Perennial Garden

“Perennial Garden” is the ideal green roof system build-up for growing a wide variety of blooming perennials, aromatic shrubs and ornamental grasses.
Technical Data
Build-up height ca. 6 ¾ in.
Weight, saturated ca. 42 lbs/sq. ft.
Water storage capacity ca. 1.8 gal/sq. ft.

Roof Garden

Our top quality roof garden system offers high water storage and allows for a variety of design concepts including walkways, water features, patios or play areas.
Technical Data
Build-up height from 12 ½ in.
Weight, saturated from 87 lbs/sq. ft.
Water storage capacity from 3.5 gal/sq. ft.

Urban Rooftop Farming

Enjoy fresh vegetables and fruits from your roof! ZinCo provide a system build-up with proven drainage technology for growing vegetables on roofs.
Technical Data
Build-up height ca. 9 ¾ in.
Weight, saturated ca. 61 lbs/sq. ft.
Water storage capacity ca. 2.5 gal/sq. ft.
Other Green Roof Systems

Walkways on Roofs and Plaza Decks

Green roofs can be combined with paved areas for recreation or sporting surfaces. ZinCo provide well-engineered systems and accessories for all kinds of use.

Driveways on Roofs and Plaza Decks

ZinCo driveway systems meet all requirements and ensure durable functionality for use under driveways, fire brigade access or parking areas on roofs and plaza decks.

Stormwater Management Roof

ZinCo provide a well-engineered stormwater management roof system, designed to detain stormwater and release it in a pre-defined period.
Technical Data
Build-up height ca. 150 mm
Weight, saturated ca. 155 kg/m²
Water storage capacity ca. 80 l/m²

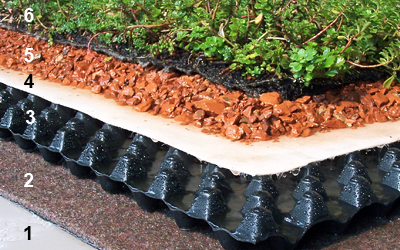

Green roof system build-up

1. Root Barrier

Prevents roots from penetrating the roof membrane if the existing roof membrane is not root proof.

2. Protection Mat

Protects roof membrane from sharp objects and retains rainwater for plants.

3. Drainage Layer

Retains rainwater for dry periods and drains surplus water.

4. Filter Sheet

Prevents fine particles from being washed into the drainage layer.

5. Growing Layer

Engineered growing medium based on minerals and organic material.

6. Plant Level

Accomodates a variety of vegetation based on climate, landscape design, load bearing requirements and desired benefits to building owners and communities.

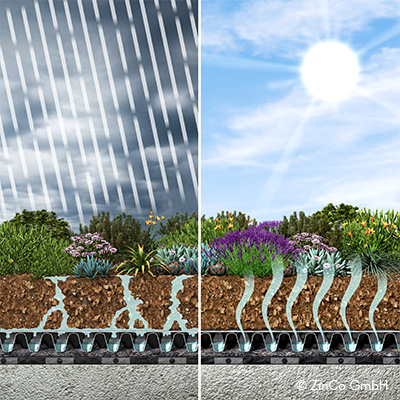

Stormwater Management

Reduces immediate water run-off. The sewer pipes can be reduced in capacity.

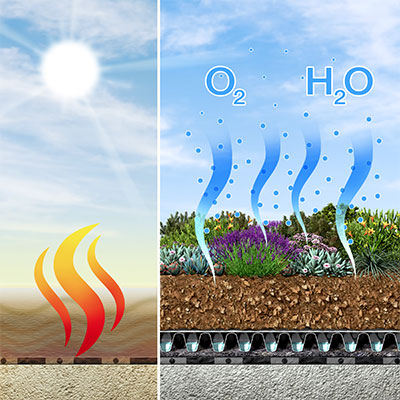

Improving the Microclimate

Green Roofs humidify the air and provide some cool air. This is particularly effective on rooftops that lie adjacent to residential or office spaces, but also makes a valuable contribution to improving the microclimate in our urban centers. Furthermore, air conditioning systems have a much greater effect due to the reduced heating.

Binding Dust and Toxic Particles

The large foliar surface of Green Roofs and the deceleration of the air flow that they help to create means that landscaped roofs filter between 10 and 20 % of the dust from the air. Nitrates and other substances contained in the air and rainwater are also retained and utilised.

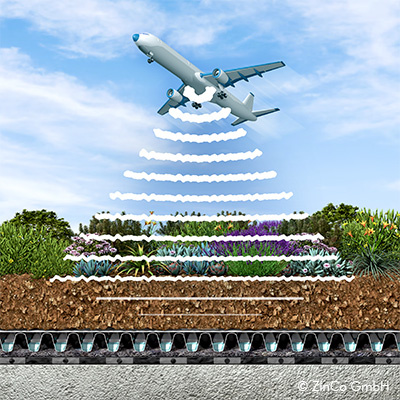

Noise Reduction

Improves sound insulation. This is most effective with buildings near airports or noisy discotheques or machinery.

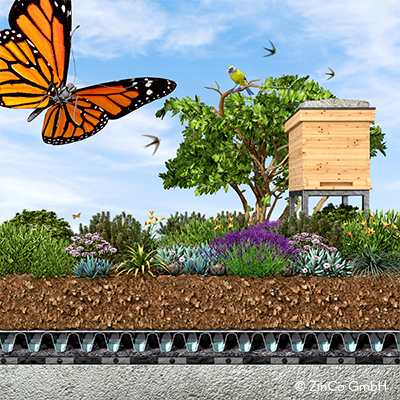

New Habitat

Encourages wildlife to remain within build-up areas.

Utilising Valuable Recycling Materials

Recycling symbol

Rubber, polyethylene and expanded polystyrene rigid foam are used in the production of drainage elements. The mono clay material Zincoblend M and humus are the basis for the production of ZinCo rooftop garden system soils. The most important criterion is the quality of the product, which is tested by recognised institutes and research bodies.



Stormwater Management

Reduces immediate water run-off. The sewer pipes can be reduced in capacity.

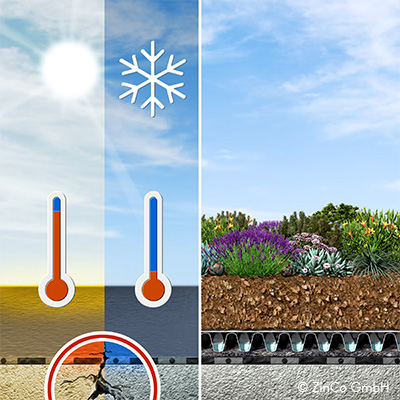

Extending Roof Life

Protects the roof membrane from UV exposure, heat, cold and hail and mechanical damage.

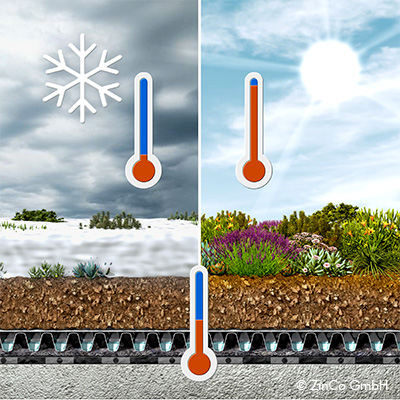

Improving Building Operations

Thermal protection in both summer and winter and reduction of heating and cooling costs.

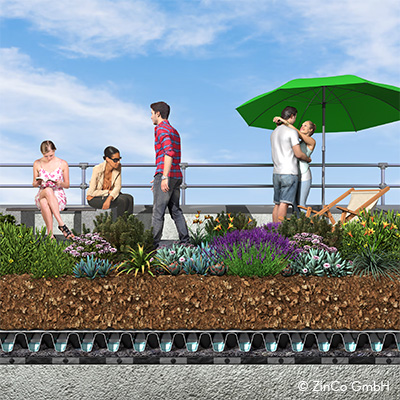

Providing Additional Space

Green Roofs offer additional space for numerous uses. Whether you want a relaxing garden, a playground or a golf course, it all can be achieved as part of the existing foot print.
